Have you ever wondered how hackers get access to networks without authorisation? Attackers often use ARP Spoofing or ARP Poisoning as one of their methods.

According to research, ARP Spoofing attacks have surged 100% from 2020 to 2023. This emphasises the increasing danger ARP Spoofing poses and the need to understand this tactic to stop attacks.

ARP Spoofing is a major danger to network security as it permits aggressors to control and obstruct network traffic, leading to information theft, unapproved access, and other malicious activities. As an ethical hacker, it is essential to understand ARP spoofing and how to prevent it.

This blog will help you learn how to carry out ARP spoofing attacks utilizing Python and how to safeguard your network from such attacks. With the help of this blog, readers will learn how to protect and find Address Resolution Protocol Poisoning attacks, making their networks safer and more secure.

In this blog i will discuss:
Types of ARP Cache Poisoning Attacks
  • Step-By-Step Guide For Python ARP Spoofing
  • Implementing Python ARP Poisoning Attack
  • Mitigating ARP Spoofing
  • Most Effective Tips For ARP Spoofing Prevention To Stop ARP Spoofing Attack
Placement Banner

Get 100% Job Assistance & get placed in your dream company

Job Assistance
3000+ Companies Tie-Ups

Enter Your Details Now

Understanding ARP Poisoning

An ARP Spoofing attack consists of sending falsified ARP requests on a local network to associate the attacker's MAC address with the IP address of another connected device. This creates a security vulnerability as the attacker can spy on the traffic intended for the pretended device.

Let's first examine how ARP works to comprehend ARP Spoofing. A device on a network makes an ARP request to discover the MAC address of the target device when it wishes to transfer data to that device. When an ARP request is sent, the device with the given IP address answers with its MAC address. The masking device stores this mapping for later use in its ARP cache.

ARP Spoofing occurs when an attacker impersonates another device on the network and sends phoney ARP messages. A false MAC address linked to the IP address of the target device will be included in the attacker's message. As a result, other network nodes update their ARP caches with the fictitious mapping, which gives the attacker access to intercept and tamper with network data meant for the target device.

Types of ARP Cache Poisoning Attacks

Active and passive ARP Spoofing are the two basic types of ARP Spoofing Attacks.

Passive ARP Spoofing includes an attacker watching network traffic and gathering data without altering network packets. Since this kind of attack produces no unusual network traffic, identifying is more challenging.

Active ARP Poisoning Attack is when an attacker actively changes network packets while they are in transit. Because it may be used to capture private data like login passwords, credit card numbers, or other valuable information, this kind of attack is riskier.

Step-By-Step Guide For Python ARP Spoofing

Here is a detailed guide for Python ARP Poisoning:

Setting up the Environment

Setting up the environment correctly is vital before launching into ARP spoofing attacks. This includes selecting the proper equipment, installing the required programmes and packages, and establishing the network topology. Each of these processes will be thoroughly discussed in this section.

Selecting the proper tools For Python ARP Spoofing

Making the correct tool selections is essential for effective ARP spoofing attacks. Scapy, an effective packet manipulation tool created in Python, is one such tool. Scapy is a preferred tool among network security specialists and ethical hackers because it enables the generation, capture, and modification of network packets. For network scanning and packet analysis, tools like Wireshark and Nmap may also be helpful.

Installing the necessary programmes and packages

Installing the necessary software and packages is the next step after selecting the right tools. Python, Scapy, and other dependencies are among them. Since Python is downloadable from the Python website, installing it is rather simple. Scapy installation may be a little more difficult, but pip, the Python package manager, can help. Using pip, more necessary packages may also be installed.

Creating the network topology in C

Configuring the network topology correctly is essential for launching ARP spoofing attacks, which can be done through the use of software like VirtualBox or VMware. The virtual network should only include the attacker's computer, the target machine, and the router machine. The victim computer will be the target of the ARP spoofing attack, which will be launched from the attacker machine. The router machine will be used to forward packets between the two machines.

Create three virtual machines, give them the proper IP addresses, subnet masks, and default gateways, and then configure the virtual network. Two network interfaces for the victim computer and the router machine should be configured on the system. Before implementing the ARP spoofing attack, make sure the computers can interact with one another.

Creating the right environment is essential for carrying out ARP Spoofing with Python effectively. The procedure requires many crucial phases, including picking the right tools, installing required programmes and packages, and setting up the network architecture. Once the environment is ready, we can proceed to learning the ARP protocol and putting the ARP spoofing attack into practice.

Implementing Python ARP Poisoning Attack

Let’s discuss how to implement an ARP Spoofing attack using Python.

Scanning the Network for Targets
  • Use the arping command to scan the network for active hosts
  • Use the arp command to view the ARP cache and identify potential targets
  • Alternatively, use a network scanner tool such as nmap to identify potential targets
Capturing ARP Packets
  • Use the Scapy library to capture ARP packets on the network
  • Use the sniff function to capture ARP packets with the ARP filter
  • Filter packets by source or destination IP address to identify potential targets

Modifying ARP Table
  • Use the Scapy library to modify the ARP table of the target host
  • Use the ARP class to create a new ARP packet with modified MAC address
  • Use the send function to send the modified ARP packet to the target host

Implementing ARP Spoofing Attack
  • Use the Scapy library to implement the ARP Spoofing attack
  • Use the ARP class to create a new ARP packet with modified MAC address and send to target and gateway

Capturing and Analysing Data
  • Use the Scapy library to capture and analyse network traffic
  • Use the sniff function to capture packets with custom filter
  • Use the HexDump function to print the raw packet data

Download The Entire Code For Python ARP Spoofing!

Mitigating ARP Spoofing

Given the increasing frequency and complexity of ARP spoofing attacks, it is essential to implement solutions for their effective mitigation, detection, and prevention. Here are several techniques to lessen ARP spoofing:

Knowledge of ARP Spoofing Prevention Methods

  • Network Segmentation: Network segmentation may lessen the effect of ARP spoofing attacks by dividing your network into many subnets.
  • Virtual Local Area Networks (VLANs): By separating traffic and limiting unauthorised access, VLANs give an extra degree of protection.
  • MAC address filtering: You may stop ARP spoofing attacks from unauthorised devices by only allowing authorised MAC addresses on the network.
  • ARP Spoofing Prevention Software: XArp, Netcut Defender, and NetWitness Investigator are a few examples of software that may be used to identify and stop ARP spoofing attacks.

Using methods for detecting ARP Spoofing

  • ARPwatch: This programme keeps track of network traffic and notifies system administrators of any unusual ARP behaviour.
  • ARP detection tools: Network switches may be set up to recognise and notify on abnormal ARP activity.
  • Network Flow Monitoring: Tracking network traffic may provide clues about shady activities and aid in the detection of ARP spoofing attacks.

ARP Spoofing Detection In Python

Python may help in ARP Attack Detection with many packages, including Scapy and Netifaces. The following are some methods for detecting ARP spoofing:

  • Verifying ARP tables for consistency: Each device in a network has an ARP table that records MAC addresses and associated IP addresses. These tables are altered during ARP spoofing, resulting in discrepancies. This may be found by comparing several networked devices' ARP tables.
  • Sending ARP probes: To see whether any network devices are returning invalid MAC addresses, ARP probes are sent to all connected devices. If so, ARP spoofing is evident.
  • Utilising Sniffing Tools: Network traffic may be captured and analysed using tools like Wireshark. Using these tools, any suspect ARP packets may be found.

ARP Spoofing Attacks: Analysis and Mitigation

  • ARP table manual verification: You may spot any alterations performed by an attacker by manually doing an ARP table verification.
  • Packet analysis: Examining recorded packets may help you locate and isolate the impacted devices as well as determine the attacker's MAC address.
  • Disable automatic ARP updates: You may avoid ARP cache poisoning and reduce the attack's overall impact by preventing automatic updates.
  • Blocking ARP Spoofing: By examining and filtering network traffic, Network Intrusion Detection and Prevention Systems (NIDPS) may stop ARP spoofing attacks.

Unlock the Secrets of Hacking with our Ethical Hacking Course - Gain Expert Insight into the World of Cybersecurity!

A career in cyber security can be very rewarding. You should enroll in an Ethical Hacking Course from a reputable provider if you want to become an ethical hacker. TOPS Technologies is a leading provider of cyber security training courses. For those interested in pursuing a career in this lucrative industry, we offer a broad variety of courses. TOPS Technologies offers everything, from the fundamentals of ethical hacking to the more complex Python Course with Placement.

The Cyber Security Training Courses have curriculum that offer comprehensive, industry-relevant information, enabling students to concentrate on the program's security features. Additionally, you will learn how to develop strategies to stop and neutralise any possible attacks. The knowledgeable faculty at TOPS Technologies also offers the students placement assistance.

Most Effective Tips For ARP Spoofing Prevention To Stop ARP Spoofing Attack

Here are some ways to prevent or stop ARP spoofing attacks:

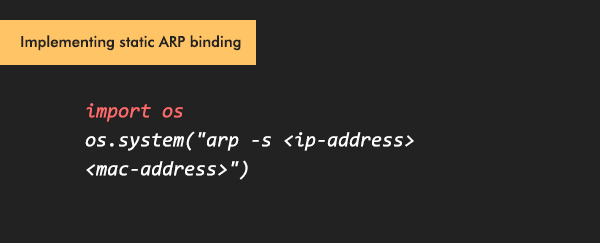

Implementing static ARP binding

Configure static ARP entries on your device's ARP table that map the MAC addresses to the IP addresses of devices you regularly communicate with. This way, your device won't accept ARP packets that don't match the entries on its ARP table.

Example Code:

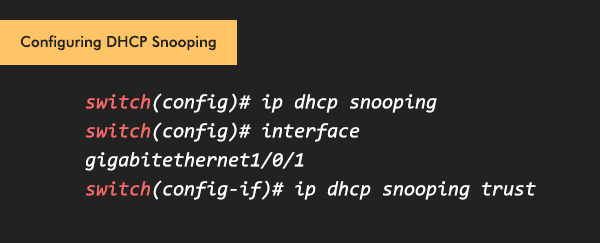

Configuring DHCP Snooping

DHCP snooping is a feature that enables a switch to block DHCP packets from untrusted hosts to prevent ARP spoofing.

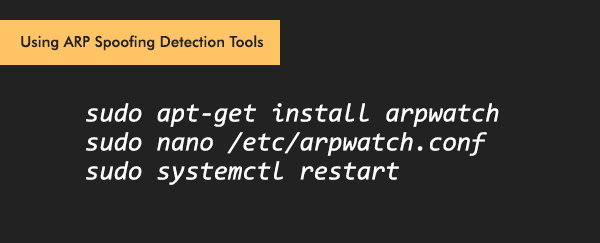

Using ARP Spoofing Detection Tools

Use network monitoring tools that can detect and alert you to ARP spoofing attacks. Tools like Wireshark and ARPwatch can be used for this purpose.

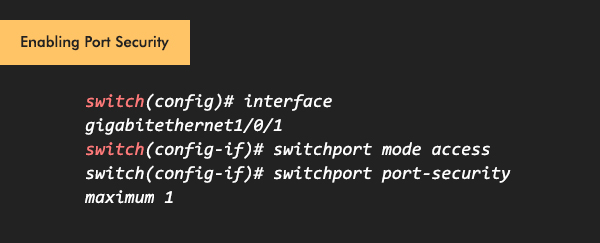

Enabling Port Security

Enabling port security on network switches can help mitigate ARP spoofing attacks by restricting the number of MAC addresses that can connect to a particular port.

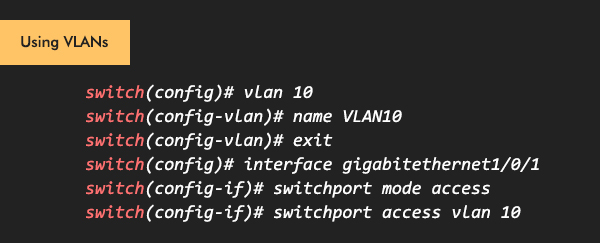

Using VLANs

Using VLANs to separate your network into multiple logical networks can prevent ARP spoofing attacks from spreading beyond a single VLAN.

Combining these methods will result in a complete defence against ARP spoofing attacks. In order to stop vulnerabilities from being exploited, it's critical to frequently check your network for any strange behaviour and to maintain your gear and software updated.
